Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc
1、 Explanation
CGT type super strong full magnetic drum is mainly used to remove ferromagnetic impurities in powder, sheet and granular raw materials, and is widely used in industries such as ceramics, power, mining, plastics, chemicals, rubber, pharmaceuticals, food, environmental protection, pigments, dyes, electronics, metallurgy, etc.
2、 Principle
The CGT type super strong all magnetic drum can be installed on the motor of the conveyor equipment to form a magnetic separator with the conveyor belt. When substances containing iron pass through, they are attracted by the magnetic drum and scraped off by external forces such as scrapers to separate the impurities from the material, ensuring the integrity of the equipment and the safety of the product.
3、 Characteristics
No energy consumption, no pollution, simple structure, easy to use, more thorough iron removal, and more significant effect. This product uses rare earth alloy neodymium iron boron as the magnetic source and is made using a special manufacturing method. Strong magnetic force, long service life, specifications and styles can be customized according to customer requirements and on-site conditions. Suitable for occasions with stricter iron removal requirements and larger iron removal quantities.

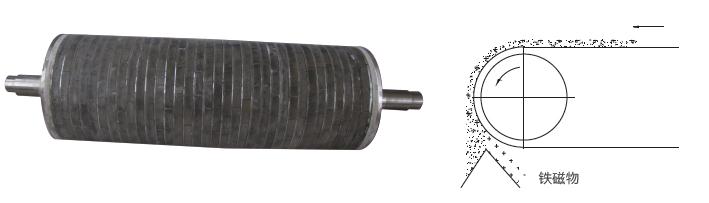

4、 Schematic diagram

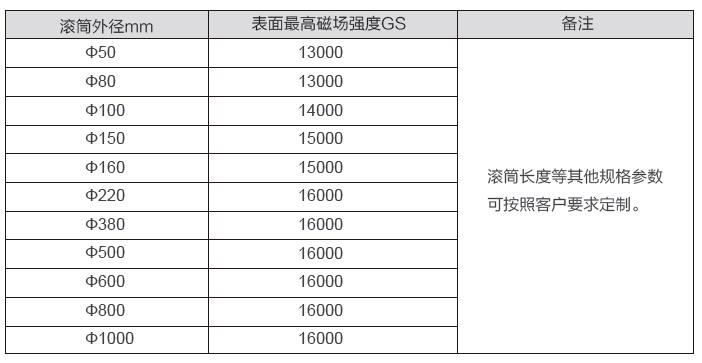

5、 Main technical parameters

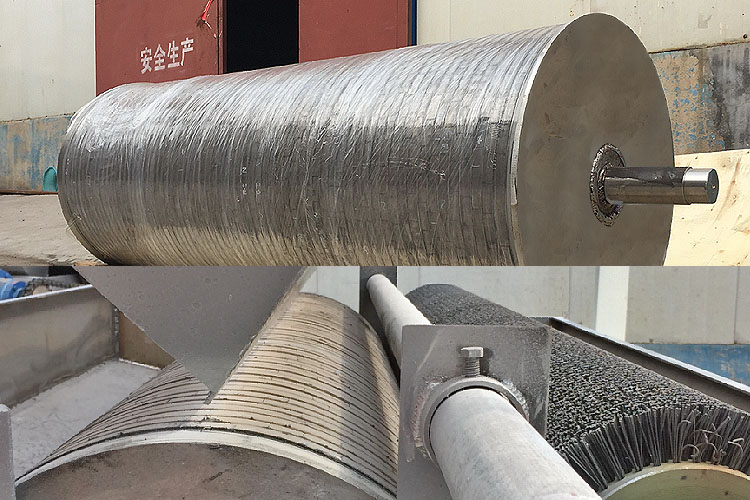

6、 Industry Applications
