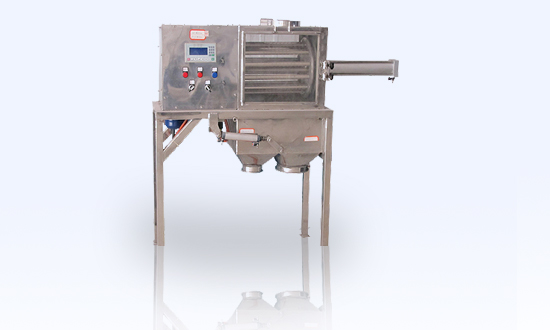

CBZ type rotary automatic magnetic separator

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Characteristics

The CBZ rotary automatic magnetic separator can be installed in assembly lines to remove fine and very fine iron metal impurities from bulk materials. The automatic timing controller can set the cleaning time interval based on the iron content. Its strong magnetism can remove ferromagnetic substances from flowing, dry, flowable, powdery, fine particles (particle diameter<6mm), and thin sheet-like materials.

Installation method: free fall, pipeline series for conveying materials, single machine use for bulk materials.

Application industries: Food industry, chemical industry, pharmaceutical industry, plastic industry, wood industry, recycling industry, packaging industry, quartz sand iron removal, potassium feldspar iron removal, mica iron removal, micro powder iron removal, fly ash iron removal, and all 10-500 mesh fine powder materials for iron removal.

Product Description: The CBZ rotary automatic magnetic separator is mainly used to separate ferromagnetic impurities in materials that are prone to clumping or adhesion. The rotating magnetic rod driven by the motor can prevent material blockage, ensuring that the product can fully contact the magnet during the flow process.

Product advantages: The cleaning of the system is fully automated, and the magnetic core sealed in the stainless steel shell shuttles back and forth between the work area and the cleaning area. The powerful magnetic force can automatically remove the adsorbed iron according to the set time.

Standard caliber (mm): 150, 200, 250, 300, 350, 400, 450, 500. Customized according to customer on-site requirements.


Unloading method: timed control, automatic clearing, adjustable interval time.

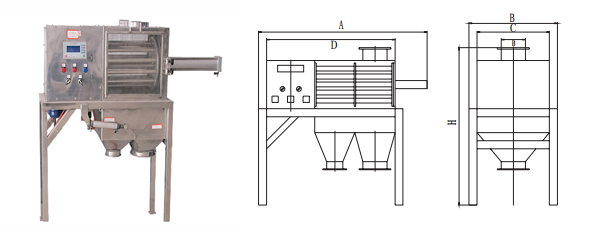

2、 Schematic diagram

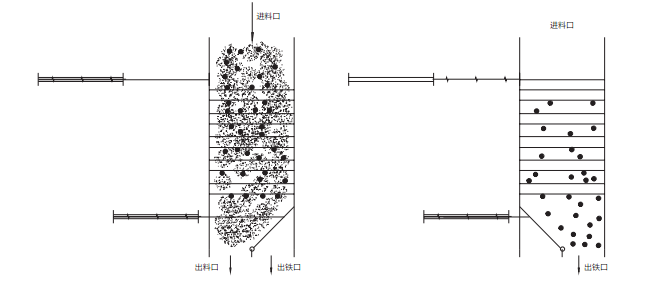

3、 Schematic diagram

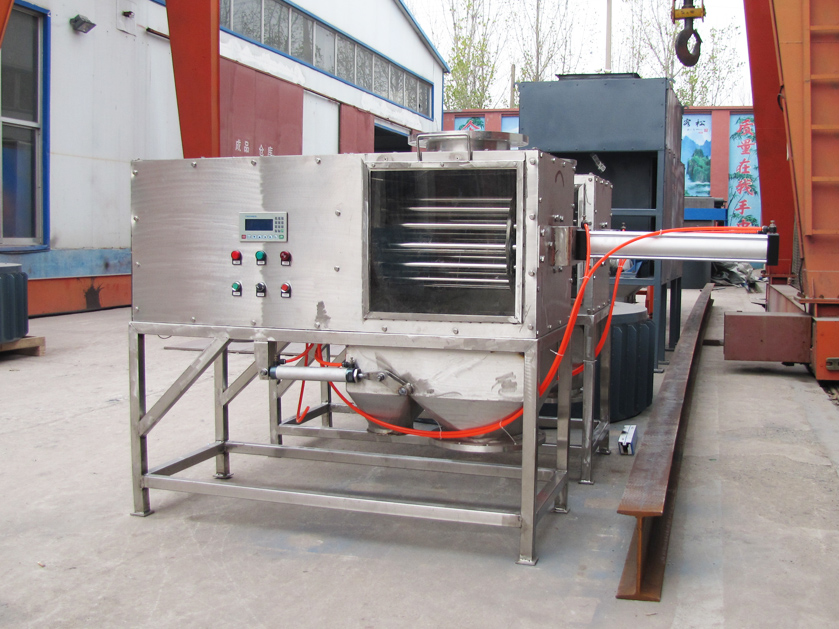

4、 Industry Applications
