1、 Characteristics

The CXJ drum type automatic magnetic separator (from single drum to triple drum) is a magnetic separation equipment that continuously and automatically removes iron from dry powder.

It adopts a unique magnetic circuit design internally, using high-performance permanent magnet neodymium iron boron material as the magnetic source. The magnetic field is strong, the suction force is large, and the iron removal rate is high. The feeding method adopts our company's unique uniform vibration feeding device, which ensures uniform feeding and is more conducive to separation after entering the magnetic separation zone. It has the characteristics of maintenance free, energy-saving, safe and reliable use, and can adjust and control the feeding amount, suitable for the requirements of different particles.

The product is widely used in industries such as abrasives, refractory materials, non-metallic mineral processing, carbon black, grain, feed, chemical raw materials, etc.

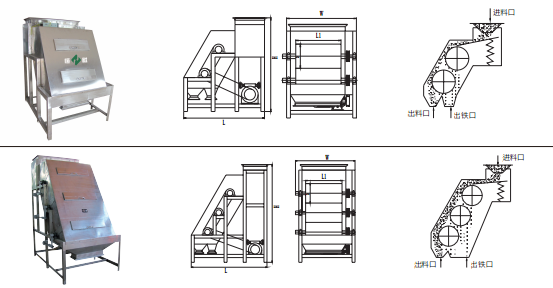

2、 Schematic diagram

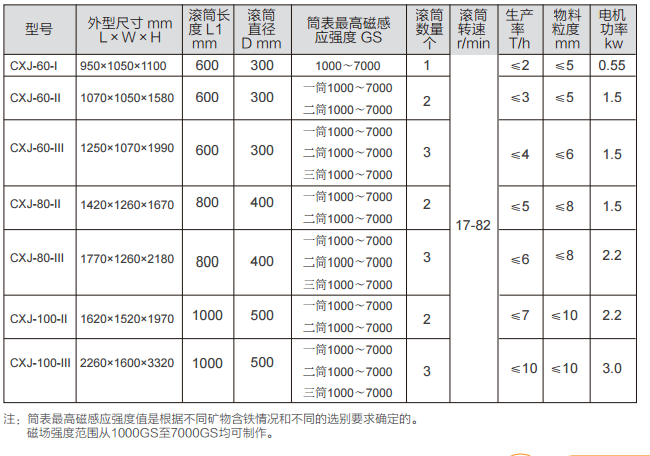

3、 Main technical parameters

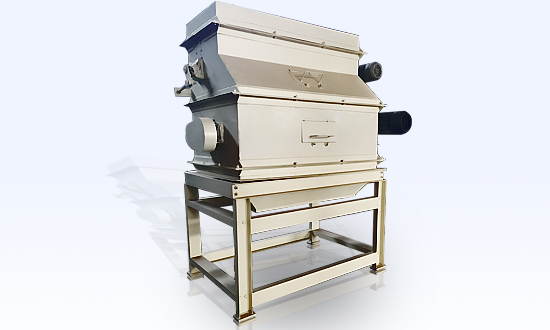

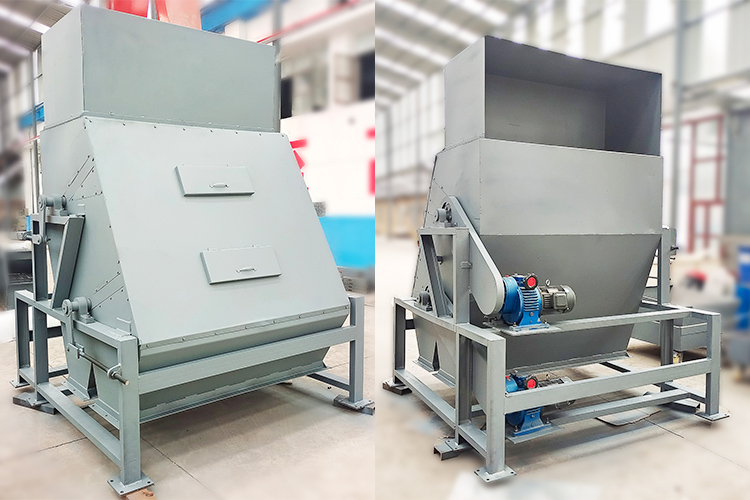

4、 Product shooting
