1、 Explanation

The DCZ dry fully automatic magnetic separator is suitable for removing various powdered materials that have passed 10-1500 mesh, such as lithium battery positive electrode ternary materials, lithium manganese oxide, lithium carbonate, lithium iron phosphate, lithium cobalt oxide, nickel cobalt manganese hydroxide ternary precursors, monohydrate lithium hydroxide, lithium mica, manganese carbonate, monohydrate lithium hydroxide, lithium mica, ternary precursors, nickel cobalt manganese hydroxide, electrolytic manganese dioxide, electrolytic metal manganese, lithium grade cobalt chloride, cobalt hydroxide, battery material waste residue, silicoaluminate, ceramic powder, quartz sand, potassium feldspar, bauxite and other new energy, high-purity quartz, mineral powder, chemical, electronic, food, pharmaceutical and other industries. Material.

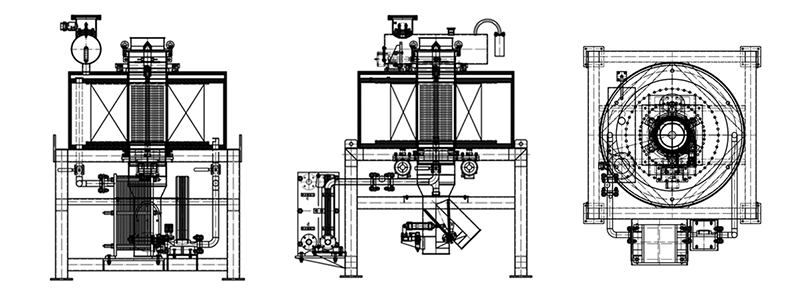

2、 Schematic diagram

3、 Characteristics

Imported confidential grade oxide film coil winding.

The condensation system with patented technology ensures a constant temperature rise of less than 50 ℃ at room temperature, reducing magnetic losses by 40%.

Imported confidential magnetic media and processing technology, with a constant working state and a 20% increase in magnetic saturation.

Based on the material characteristics of the lithium battery industry, specialized magnetic media structure design and configuration optimization are carried out to achieve a balanced increase of 20% in processing capacity and effectiveness. The effect is still significant at a particle size of μ m.

The patented coil winding technology and connection method increase the magnetic flux density by 20%.

Fully automatic intelligent control operating system, local and remote control, with three modes of operation: physical keys, touch screen, and software.

Optional dedicated material channel wear-resistant coating, with a theoretical hardness of HV1200 and does not affect the original characteristics of any raw materials.

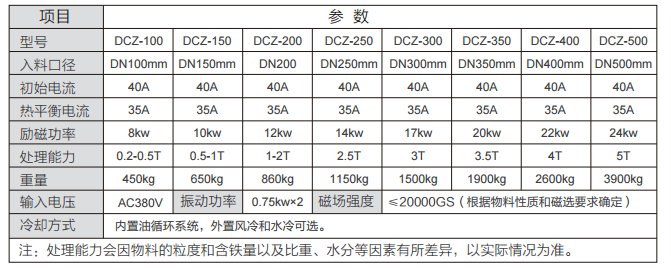

4、 Main technical parameters

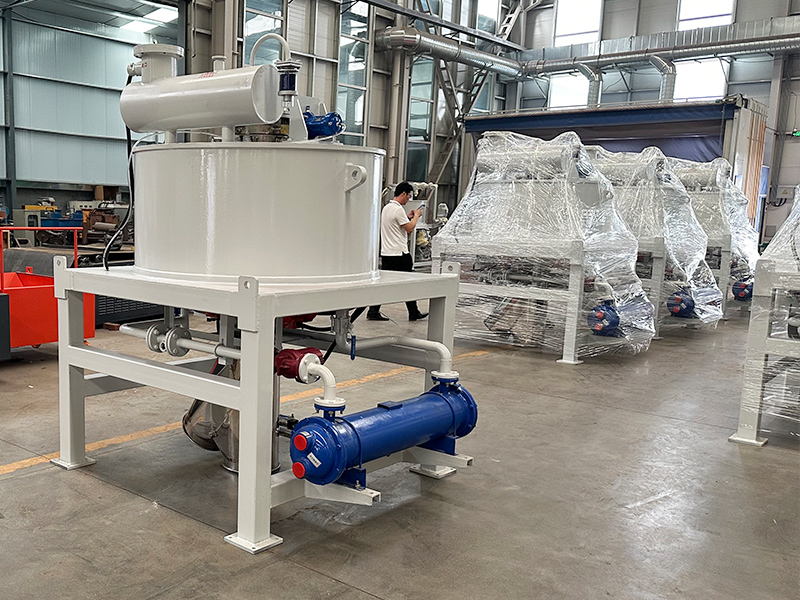

5、 Product shooting
