1、 Explanation

Adopting a new type of special rare earth permanent magnet material, it has ultra-high magnetic field strength and high magnetic field gradient. The number of magnetic rollers can be customized to 1-10 according to customer requirements.

High strength ultra-thin conveyor and sorting tape. The magnetic roller is protected by the conveyor belt, with no wear and is not easily demagnetized.

Independently design the feeding system to make the feeding more uniform, and control the feeding timing and quantity at any time. A simple and practical self weight flat tape tensioning and correction mechanical device.

Adopting a new axial series pole repulsive magnetic structure, the magnetic induction intensity on the surface of the magnetic roller is 3-4 times higher than that of the electromagnetic strong magnetic machine in terms of magnetic field gradient.

No air gap, no material blockage, the maximum selected material degree can reach 50mm, and the sorting efficiency is high. Low installation, maintenance, and production operation costs, easy to operate.

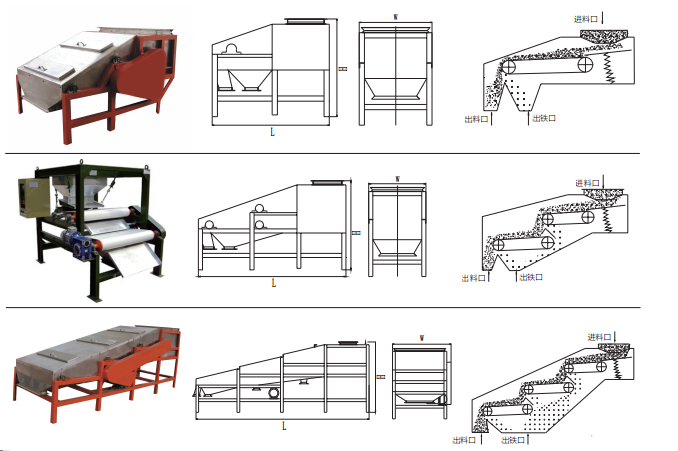

2、 Schematic diagram

3、 Application scope
Mainly used for tailings disposal or selective purification of fine-grained weakly magnetic minerals (such as pyrite, manganese ore, etc.); Refining and processing of non-metallic mineral raw materials and products (such as rhodochrosite, sillimanite, kyanite, garnet, feldspar, quartz, rutile, zircon, corundum, diamond, etc.); Remove weak magnetic harmful impurities from various abrasive products, catalysts, and other materials.

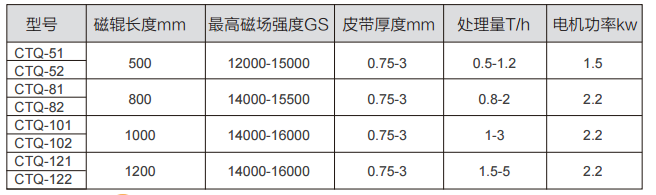

4、 Main technical parameters

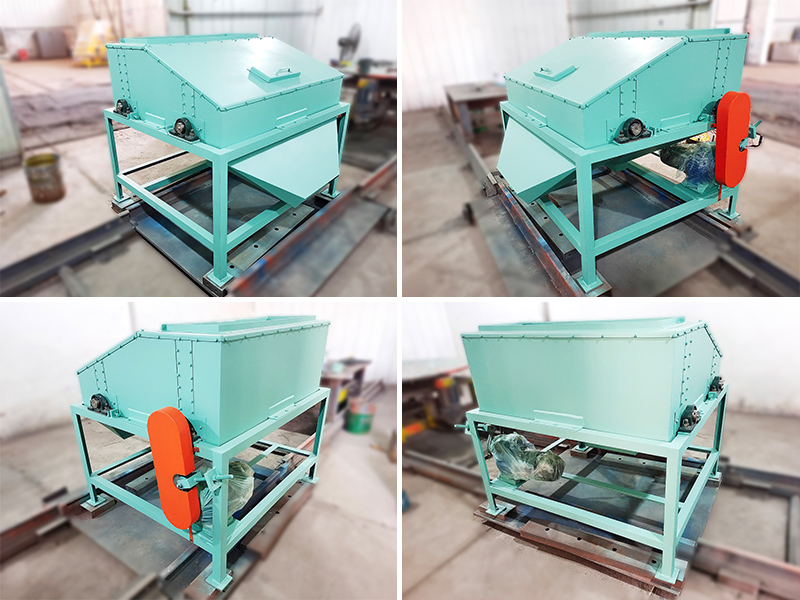

5、 Product shooting
