1、 Explanation

RBCDD explosion-proof self dumping electromagnetic iron remover is suitable for explosive gas environments with methane components and mines with coal dust. The body adopts a natural cooling design, with small size, fast heat dissipation, and light weight. The fully enclosed structure has the characteristics of moisture resistance, dust prevention, and corrosion resistance. The rotating drum adopts an automatic correction structure design, matched with an explosion-proof motor and a flame-retardant ring belt. Used in conjunction with conveyor belts to remove magnetic iron mixed in non-magnetic materials. The rectification control equipment has intelligent protection, with local and remote control functions, and can be used in conjunction with a mining explosion-proof electrical control cabinet to achieve continuous suction and disposal of iron. Mainly used in coal mines or other flammable and explosive industries such as mining, steel, chemical, electricity, or coal transportation systems in major coal enterprises. The entire series of models have obtained the explosion-proof certificate issued by the National Safety Production Fushun Mining Equipment Testing and Inspection Center and the MA Mining Product Safety Mark Certificate issued by the National Mining Product Safety Mark Center.

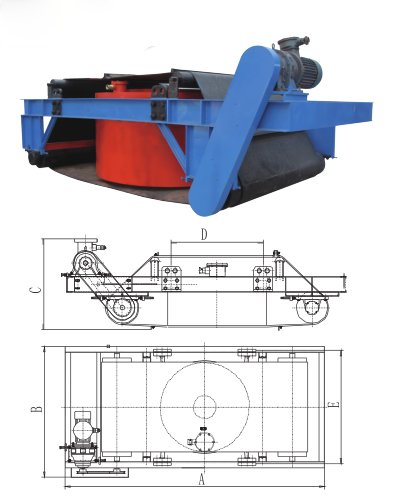

2、 Schematic diagram

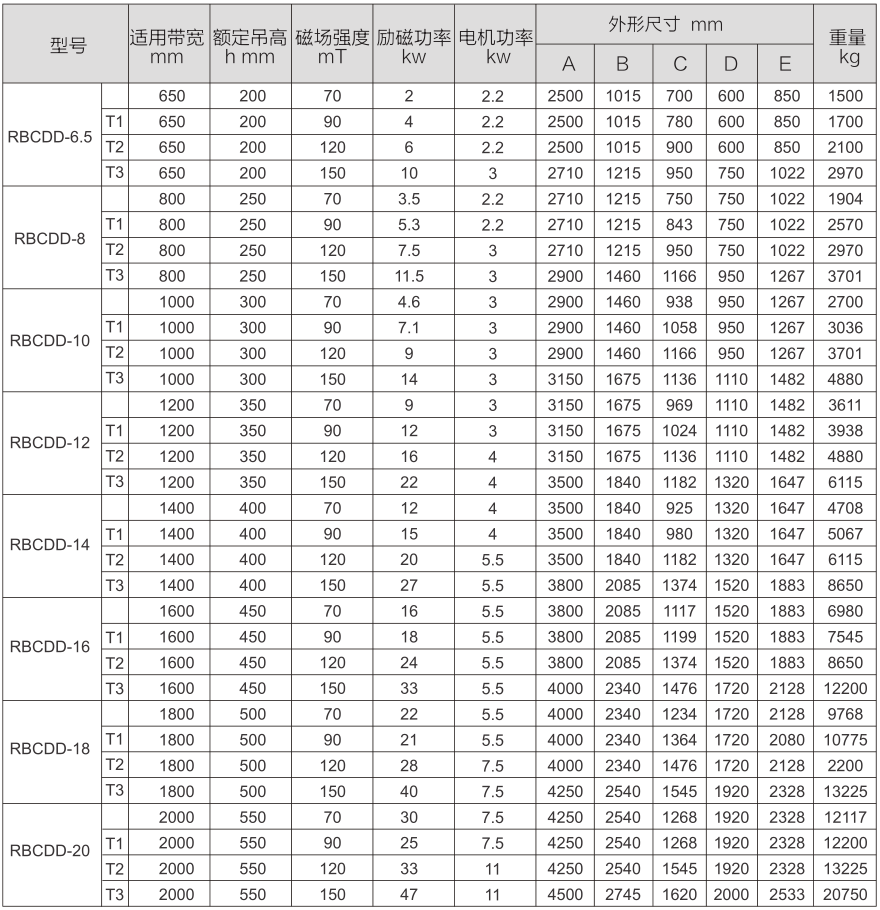

3、 Main technical parameters

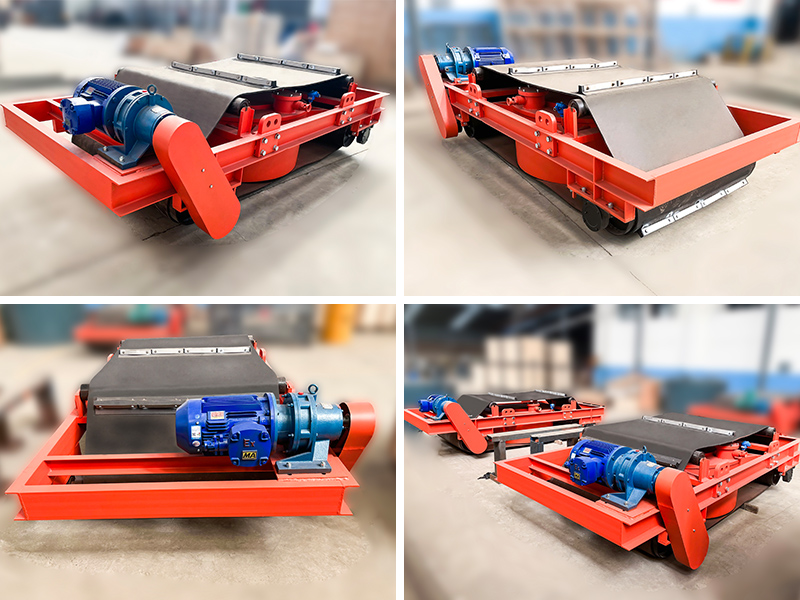

4、 Product shooting
