1、 Explanation

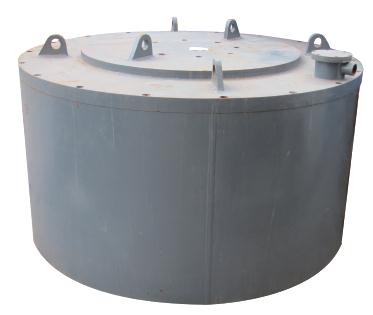

RBCDB explosion-proof disc type electromagnetic iron remover is suitable for explosive gas environments with methane components and mines with coal dust. The body adopts a natural cooling design, with small size, fast heat dissipation, and light weight. Used in conjunction with conveyor belts to remove magnetic iron mixed in non-magnetic materials. The rectification control equipment is equipped with intelligent protection, with local and remote control functions, and can achieve fully automatic control of iron suction and unloading when combined with an electric walking device. Mainly used in coal mines or other flammable and explosive industries such as mining, steel, chemical, electricity, or coal transportation systems in major coal enterprises. The entire series of models have obtained the explosion-proof certificate issued by the National Safety Production Fushun Mining Equipment Testing and Inspection Center and the MA Mining Product Safety Mark Certificate issued by the National Mining Product Safety Mark Center.

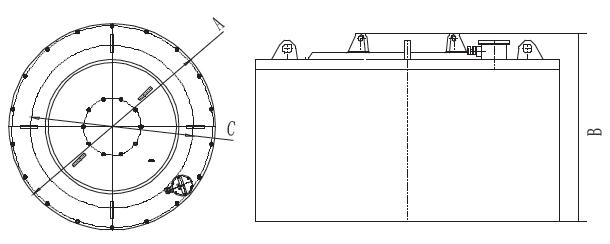

2、 Schematic diagram

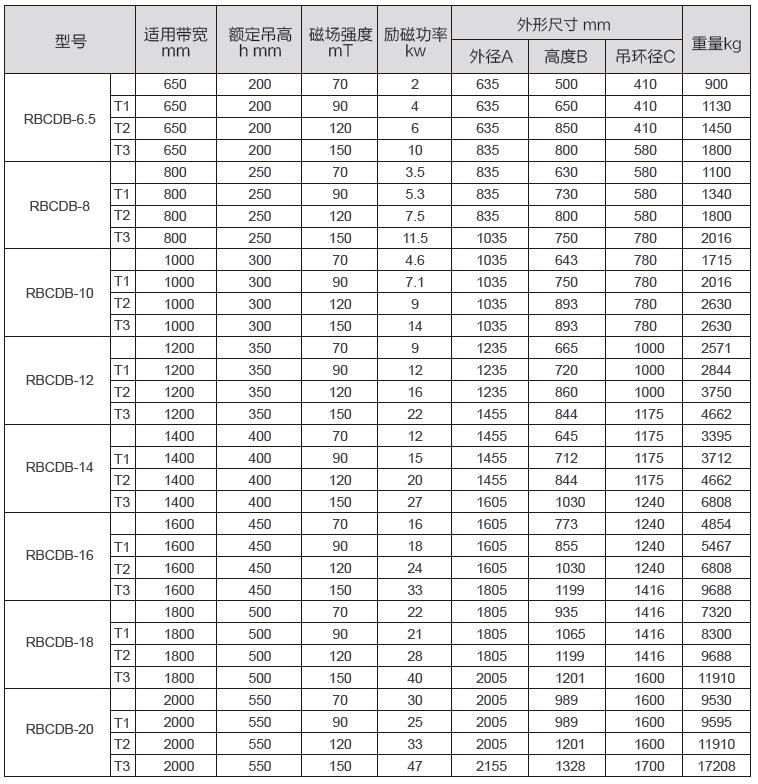

3、 Main technical parameters
