1、 Explanation

The CGB rotary semi-automatic magnetic separator is mainly used to separate ferromagnetic impurities in materials that are prone to clumping or adhesion. The rotating magnetic rod driven by the motor can prevent material blockage, ensuring that the product can fully contact the magnet during the flow process.

Installation method: free fall, pipeline series for conveying materials, single machine use for bulk materials.

Application industries: Food industry, chemical industry, pharmaceutical industry, plastic industry, wood industry, recycling industry, packaging industry, quartz sand iron removal, potassium feldspar iron removal, mica iron removal, micro powder iron removal, fly ash iron removal, and all 10-500 mesh fine powder materials for iron removal.

Its strong magnetism can remove flowing, dry, flowable, powdery, and fine particles (particle diameter<6mm), as well as ferromagnetic substances in thin sheet materials.

◇ Standard caliber (mm): 150, 200, 250, 300, 350, 400, 450, 500. Customized according to customer on-site requirements.

Unloading method: manual clearing.

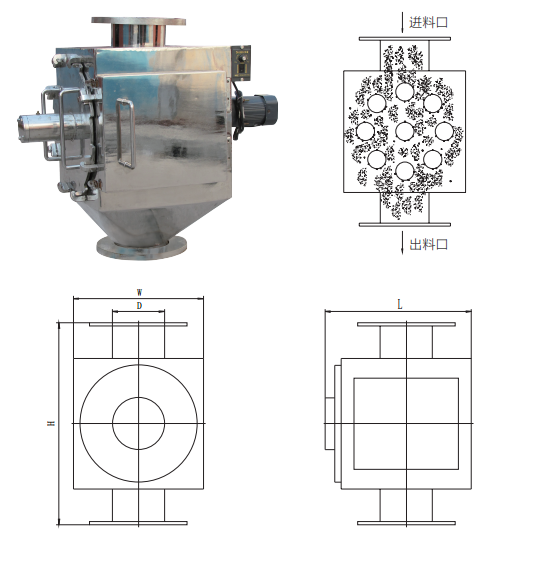

2、 Schematic diagram

3、 Industry Applications
