CBS drawer type magnetic filter

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Explanation

CBS drawer type magnetic filters are mainly used in highly sensitive applications such as food, pharmaceuticals, chemistry, quartz sand, ceramics, etc. Its strong and wear-resistant casing is made of rust proof stainless steel. All surfaces and welded joints are seamless and highly mirror polished. Its strong magnetism can even remove ferromagnetic substances from flowing, dry, flowable, powdery, fine particles (particle diameter<6mm), and thin sheet-like materials.

Installation position: The pipeline body for free fall and vertical material transportation is connected in series.

Application industries: Food industry, chemical industry, pharmaceutical industry, plastic industry, wood industry, recycling industry, packaging industry, quartz sand iron removal, potassium feldspar iron removal, mica iron removal, micro powder iron removal, fly ash iron removal, and all 10-500 mesh fine powder materials for iron removal.

◇ Standard caliber (mm): 80, 100, 120, 150, 200, 250, 300, 350, 400, 450, 500. Customized according to customer on-site requirements.

Unloading method: manual clearing.

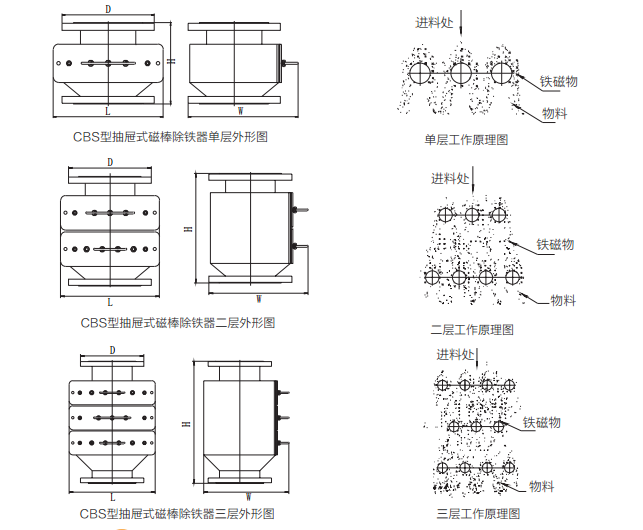

2、 Schematic diagram

3、 Industry Applications
