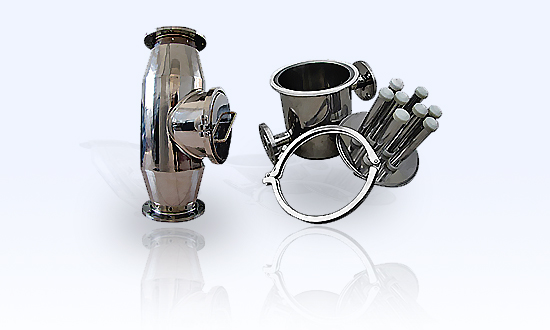

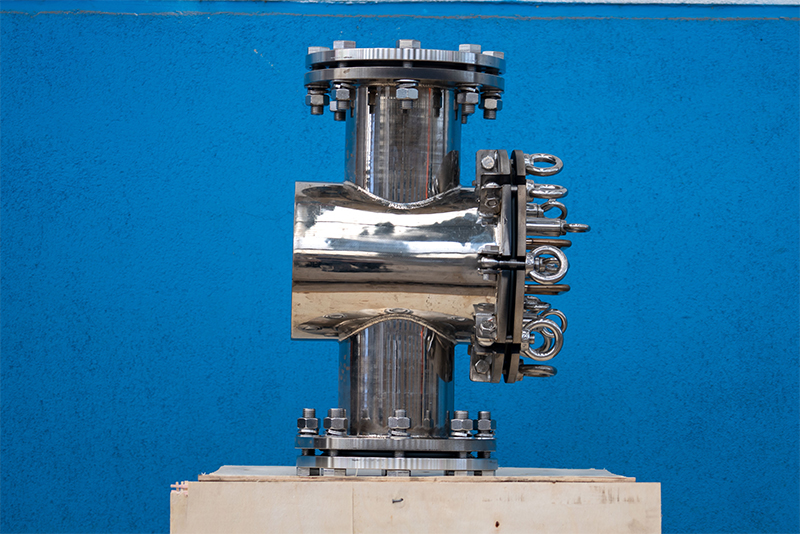

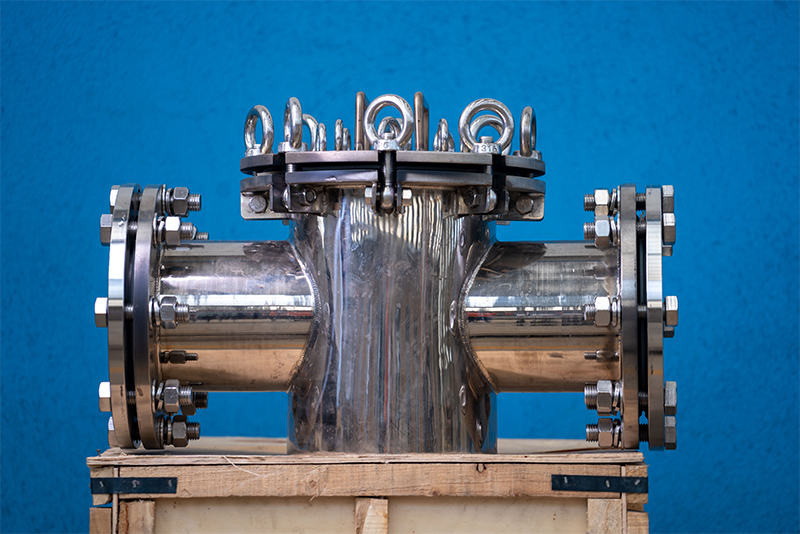

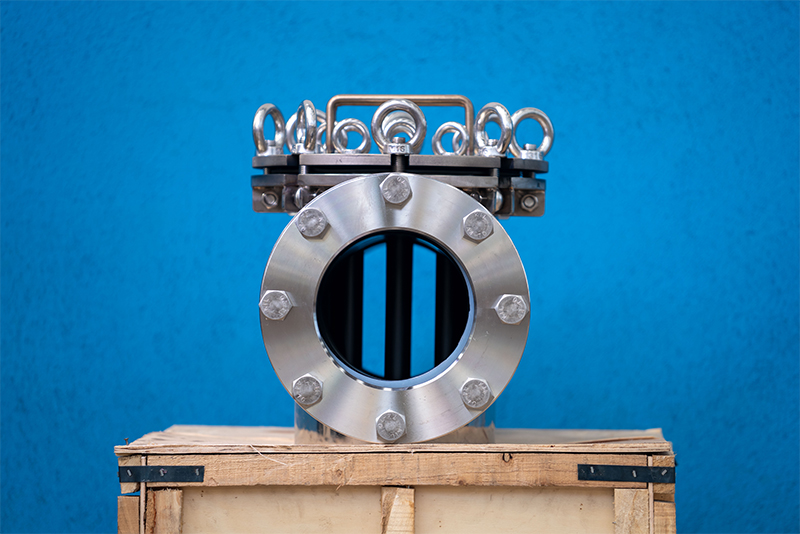

CYG wet pipeline magnetic filter

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Explanation

The CYG wet pipeline magnetic filter is suitable for removing small ferromagnetic metal particles from various liquid and paste products. The powerful magnetism can even remove low magnetic iron impurities from the product stream, ensuring fast and effective separation.

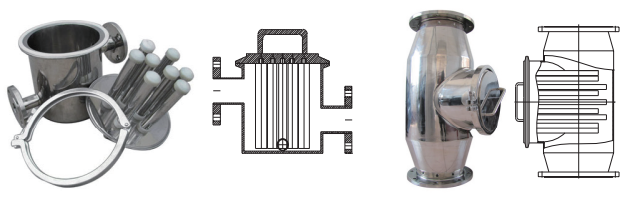

2、 Schematic diagram

3、 Scope of adaptation
The CYG wet pipeline magnetic filter is widely suitable for industries such as food, plastics, chemicals, rubber, pharmaceuticals, ceramics, environmental protection, pigments, fuels, etc.
4、 Working principle
The CYG wet pipeline magnetic filter is a magnetic rod made of high-quality seamless stainless steel pipes and rare earth alloy neodymium iron boron, and made by a special manufacturing method. It is installed in a body composed of high-quality seamless stainless steel pipes and installed in the production line conveying pipeline or discharge port with flanges. When the iron containing liquid or slurry passes through, it is attracted by the magnetic rod and firmly adsorbed on the pipe wall to ensure the integrity of the equipment and the safety of the product.
5、 Characteristics

This product uses rare earth alloy neodymium iron boron as the magnetic source, with a long service life, no energy consumption, no pollution, simple structure, easy to use, and a fully grid arranged magnetic system, which fully utilizes the strong magnetic area. The multi-layer design and layer by layer filtration make the iron removal more thorough and the effect more significant.

Surface material: SUS304 stainless steel. There are two types of interface methods: 1. flange connection; 2. Quick interface connection.

Installation method: Connect horizontally or vertically with the material pipeline.

Standard caliber (mm): 50, 80, 100, 120, 150, 200, 250, 300, 350, 400, 450, 500. Customized according to customer on-site requirements.

Unloading method: manual clearing.


6、 Industry Applications
