1、 Explanation
The magnetic system of the DHD type roller type automatic magnetic separator has been specially designed and belongs to the permanent magnet local semi closed magnetic system structure; The magnetic induction intensity is high and can be adjusted within the range of 13000GS to 20000GS. After uniformly delivering the material to the magnetic separation area, the separation is achieved by utilizing the magnetic differences of the material to have different motion trajectories under the action of gravity and magnetic field force in the magnetic separation area of the equipment. The magnetic minerals are adsorbed on the surface of the magnetic roller and rotate to reach the concentrate area. The brush removes the magnetic minerals adsorbed on the surface of the magnetic roller. This machine has excellent sorting effect on small and medium-sized granular ores with low but uniform powder ore rate, high production efficiency, and simple and convenient operation. Suitable for the purification and removal of magnetic substances from fine-grained non-magnetic ores such as silica powder, quartz, zircon, and feldspar.

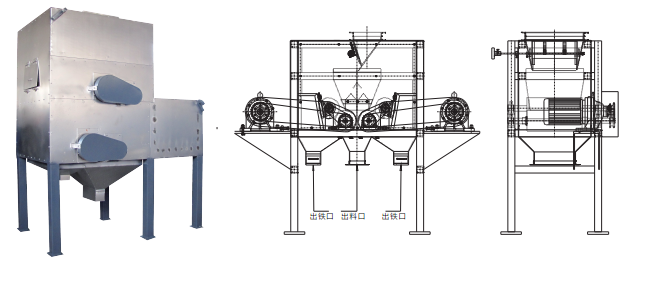

2、 Schematic diagram

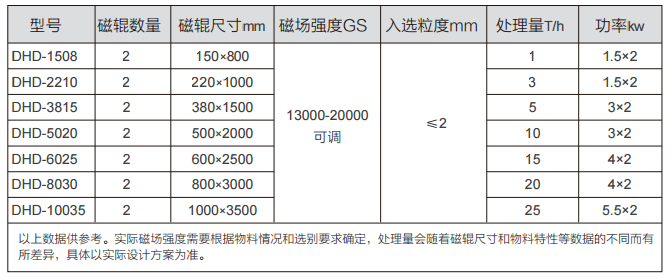

3、 Main technical parameters

4、 Industry Applications
