DCX wet fully automatic magnetic separator

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Explanation

The DCX wet fully automatic magnetic separator is widely used to remove iron powder, micro iron powder, magnetic substances, etc. from slurries and glazes in industries such as ceramics, mining, chemical, electronics, and food. Specially developed and manufactured for the selection of raw material slurries (temperature below 60 degrees Celsius) for the ceramic and alumina industries, high-end ceramics, high-voltage electric ceramics, kaolin and other industries. With a simple and convenient fully automatic electromagnetic separator, it can remove ferromagnetic substances with a mesh size of 10-1500 from various slurries.

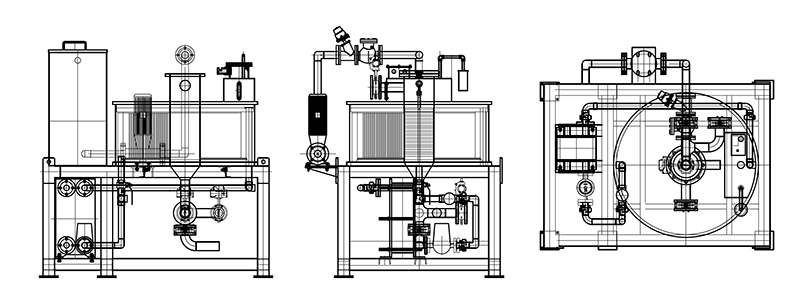

2、 Schematic diagram

DCX电磁湿式磁选机

3、 Characteristics

Using 25 # transformer oil as the electromagnetic winding insulation oil, forced circulation heat dissipation, oil temperature rise ≤ 60 ℃.

The magnetic medium is made of stainless high magnetic conductivity material, with magnetic properties 15% higher than the excitation magnetic field strength. Low energy consumption, high magnetic field gradient, uniform magnetic field distribution, effective magnetic field length, and significant iron removal effect. The fully automatic iron removal feature eliminates the need for manual operation, making iron removal convenient, fast, and thorough, with no residual iron powder or slurry loss. Cleaning is also convenient and fast, saving work time.

The fully automatic process of feeding, discharging, and unloading iron adopts advanced computer programming, the system is stable, and the control panel can be set freely, which is convenient and fast.

The valve adopts a reliable electromagnetic valve and achieves fully automatic operation through programming control. The device comes with a clean water tank and is precisely controlled through programming and valves to achieve iron unloading with minimal water usage.

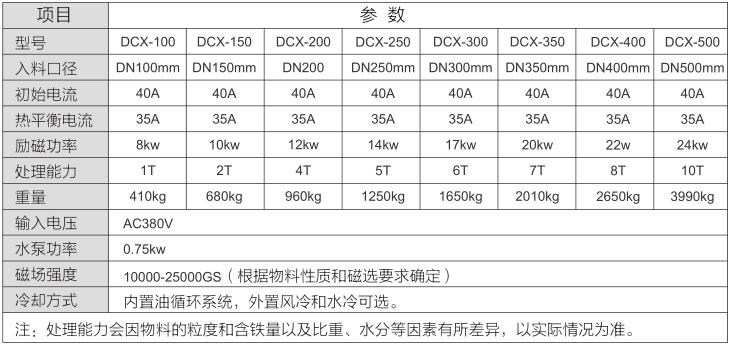

4、 Main technical parameters

5、 Product shooting
