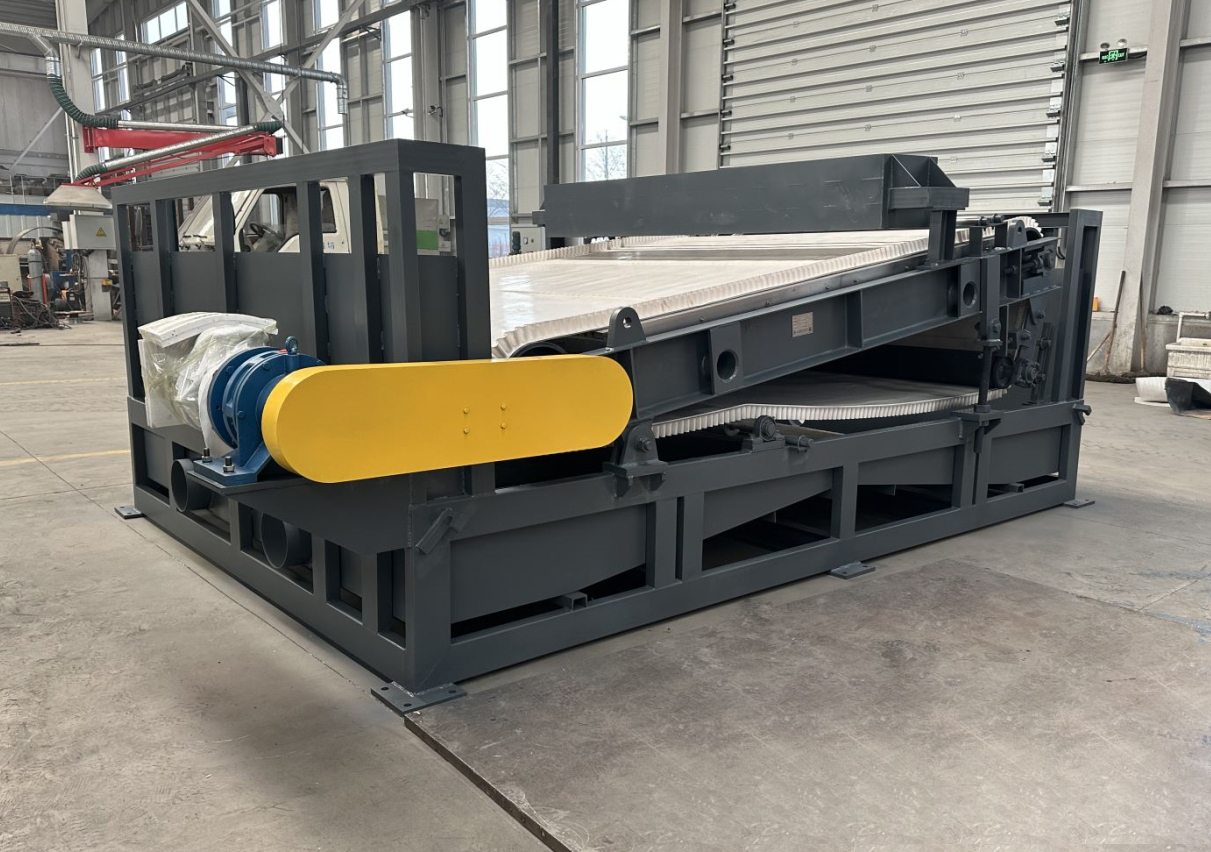

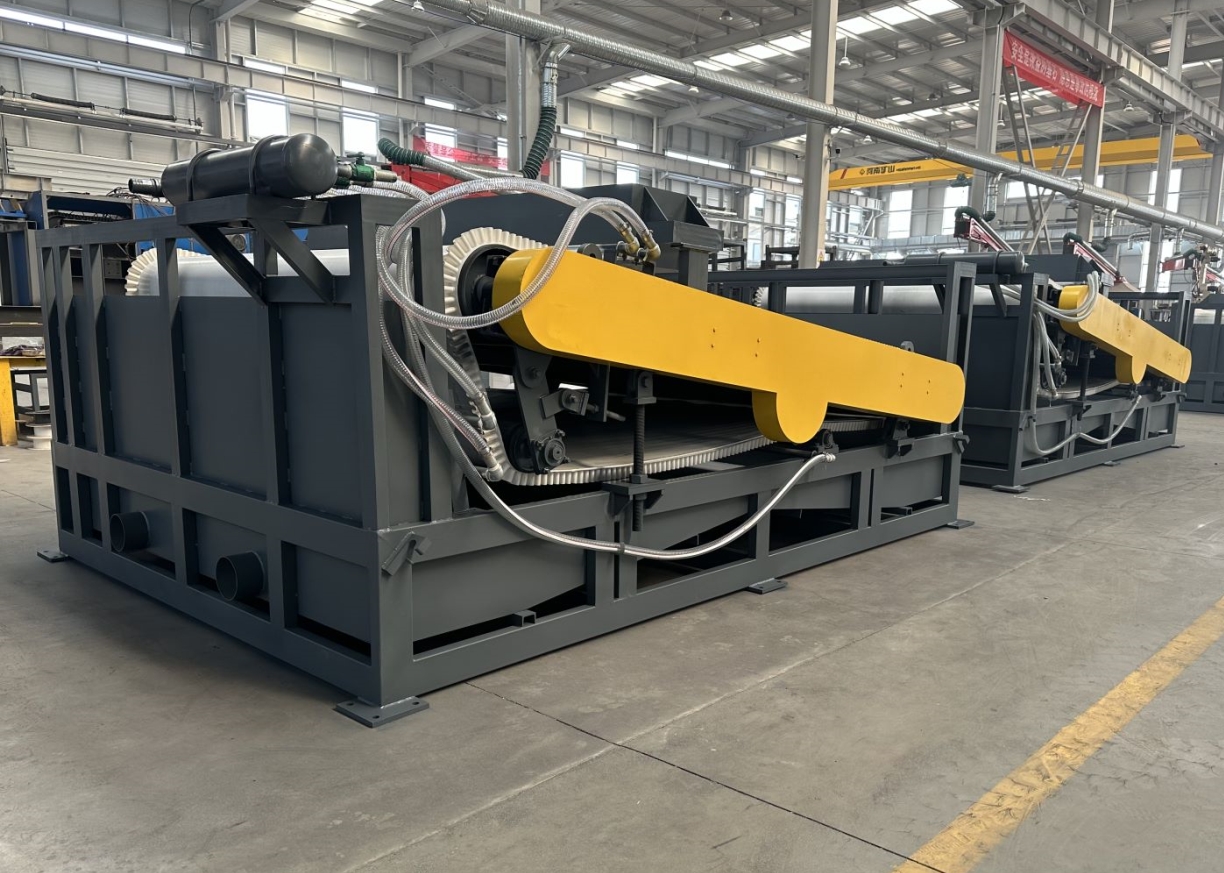

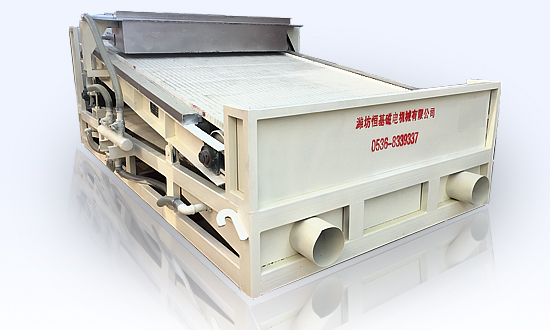

GTC wet plate magnetic separator

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Explanation

The GTC wet plate magnetic separator is mainly suitable for magnetic separation of weak magnetic minerals with particle size below 5mm and iron removal of non-metallic minerals, such as mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese ore, weak magnetite, magnetite, roasted ore, ilmenite, hematite, limonite, siderite, ilmenite, chromite, scheelite, tantalum niobium ore, red mud, etc. It can also be used for iron removal operations on materials such as coal, non-metallic minerals, and building materials.

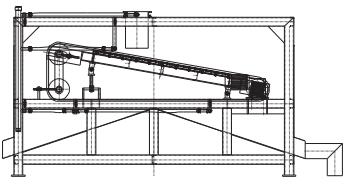

2、 Schematic diagram

3、 Working principle

The GTC wet plate magnetic separator is mainly composed of a bracket, plate magnetic separation system, feed mixing system, water source system, iron unloading system, regulating system and other structures.


During operation, the flow of materials and the iron unloading system form a reverse flow pattern. Non magnetic substances flow naturally to the discharge port based on the principles of physical structure, and are completely discharged after being washed and unloaded. Magnetic substances are adsorbed by a strong magnetic field over long distances, long areas, and multiple times. They are then transported in reverse through the iron unloading system to the iron outlet, where they are completely discharged after being washed and unloaded.

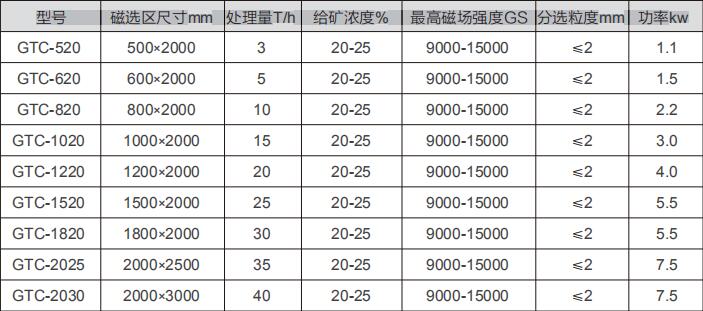

4、 Main technical parameters




5、 Industry Applications
