1、 Explanation

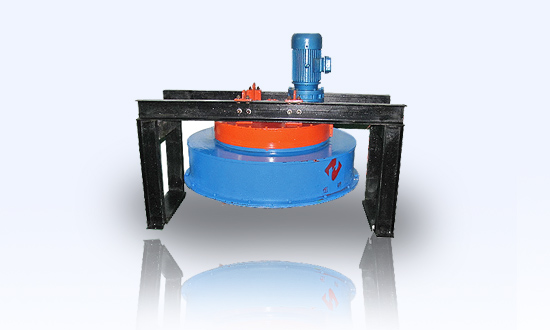

The RCPS self dumping disc type permanent magnet iron remover is an efficient iron remover developed by our company. The internal magnetic materials of this device are all made of high-strength rare earth "neodymium iron boron magnetic king" to form a strong magnetic core. The magnet structure is arranged in a fan-shaped radial pattern. The working face disk is driven by a reduction motor to rotate by gears, and there is a fixed stainless steel scraper on the working face at the bottom of the disk. When the disk rotates, it is forced to automatically unload iron. Compared with the rubber belt unloading method, the torque force during rotation of the gear structure can exceed 12 times.

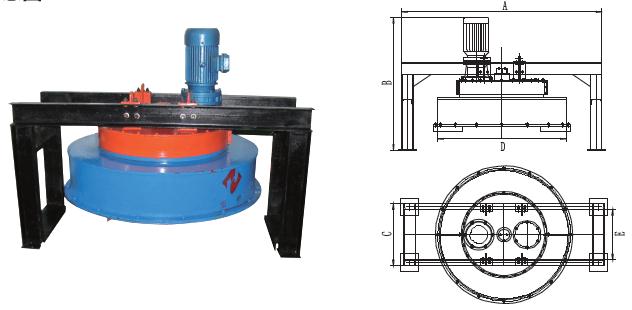

2、 Schematic diagram

 三、特点

Due to the fact that the working face is entirely made of stainless steel material and features a sealed gearbox, it can adapt to extremely harsh environments such as steel slag, slag, and other high-temperature environments, or special harsh environments such as outdoor, humid, splashed water, corrosion, high temperature, high dust, and large inclination angles. The whole machine has a small volume, easy transportation, reasonable structure, small installation space, and light weight. It can basically adapt to installation in all positions such as narrow space belt conveyor tunnels.

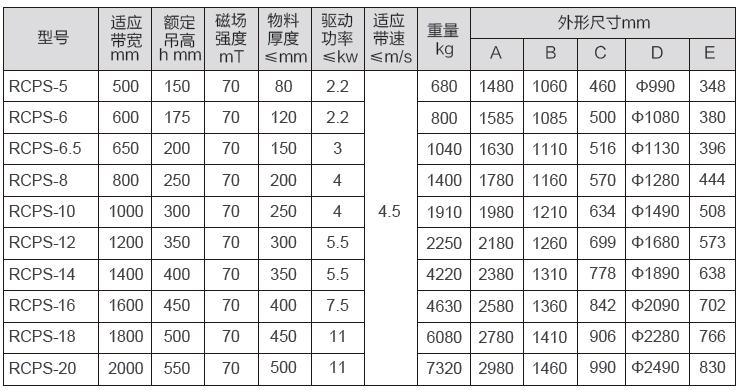

4、 Main technical parameters
