1、 Explanation

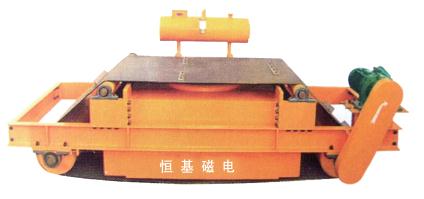

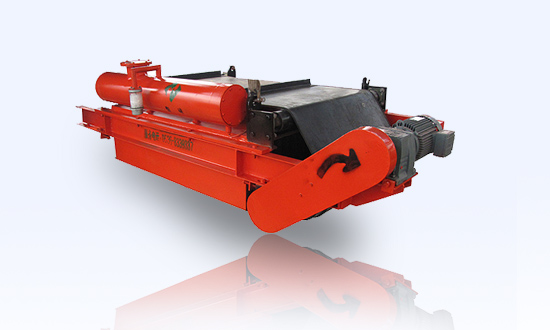

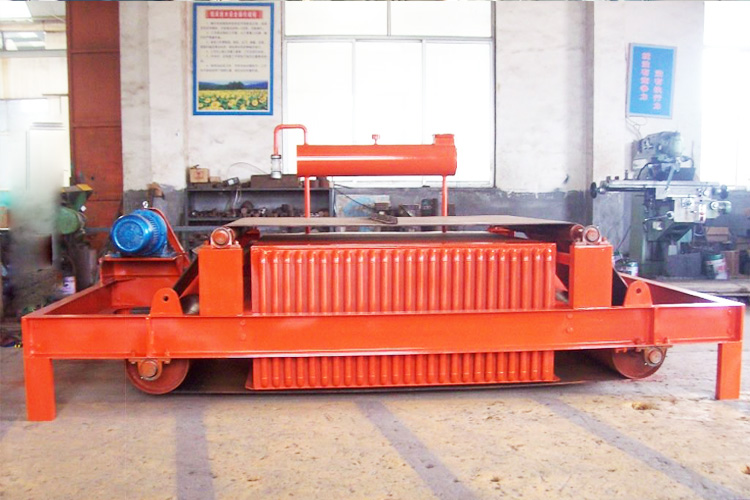

The RCDF oil cooled self dumping electromagnetic iron remover is an iron unloading mechanism composed of a drive motor, a drum, and an iron unloading tape with a scraper added to the RCDE series iron remover. It has the advantages of high magnetic force, fast heat dissipation, dust prevention, rain resistance, corrosion resistance, continuous operation, and low maintenance costs.

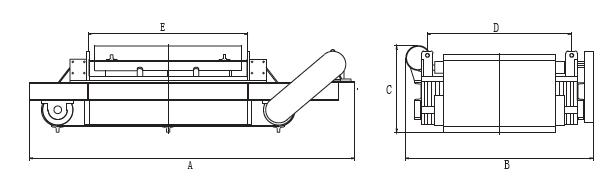

2、 Schematic diagram

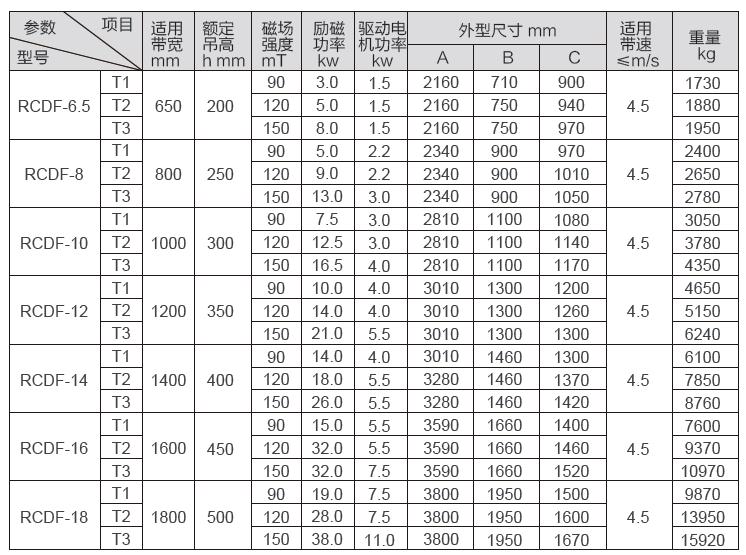

3、 Main technical parameters

4、 Industry Applications
