1、 Explanation

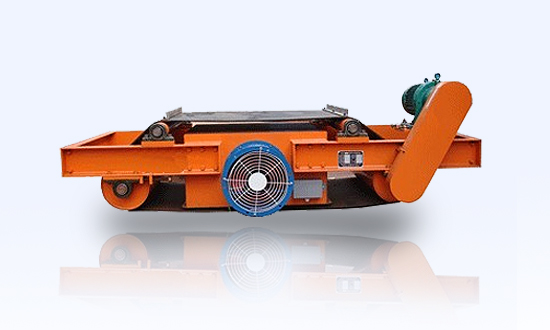

The RCDC air-cooled self dumping electromagnetic iron remover is an iron unloading mechanism composed of a drive motor, a drum, and an iron unloading tape with a scraper added to the RCDA series iron remover. During the working process, the iron unloading mechanism automatically unloads the ferromagnetic substances adsorbed by the iron unloading belt into the iron collection box, without the need for power outage and manual cleaning, achieving automatic iron removal.

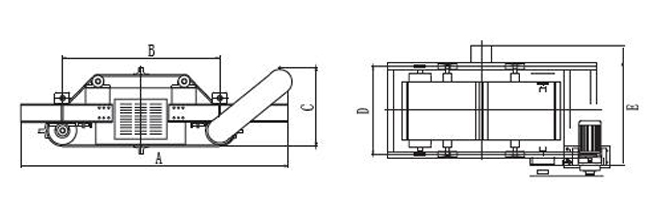

2、 Schematic diagram

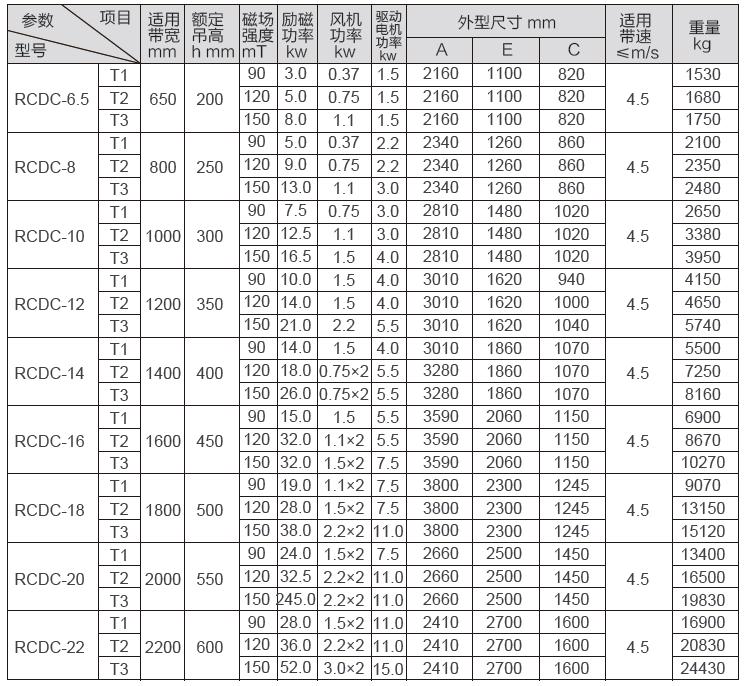

3、 Main technical parameters

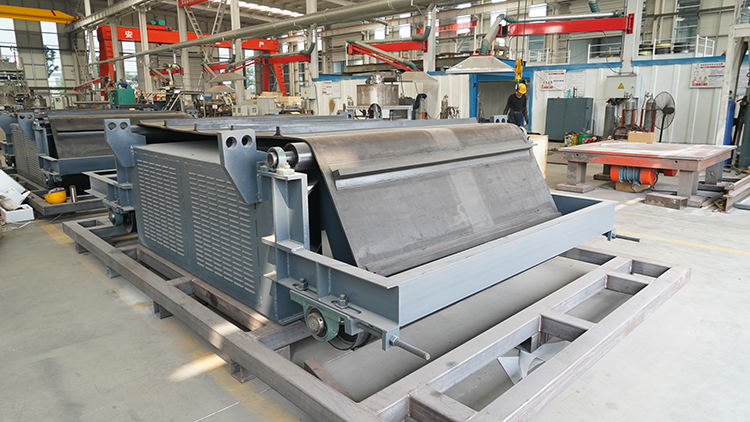

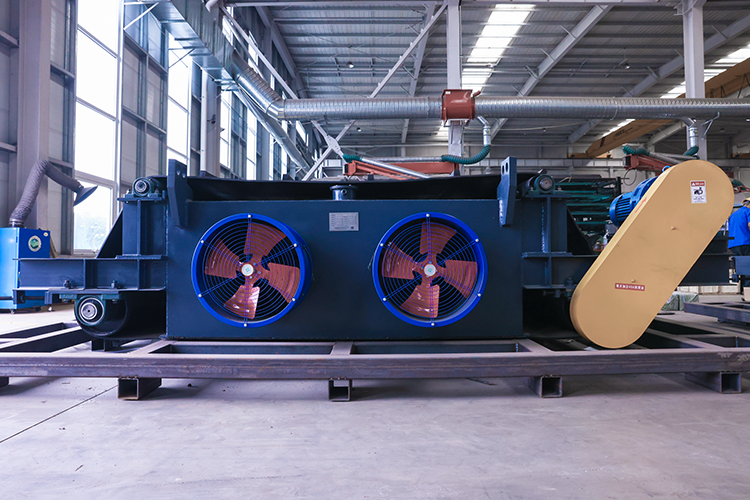

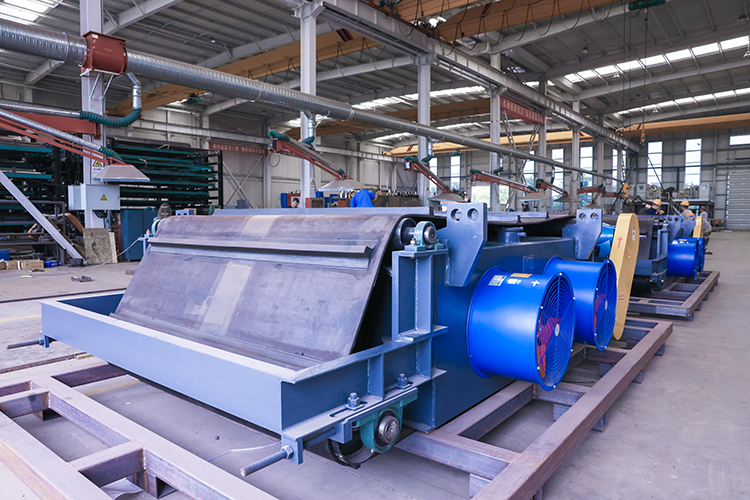

4、 Product shooting
