1、 Explanation

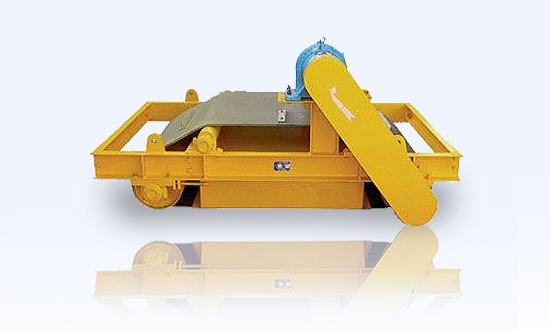

Compared with the RCYD type permanent magnet self dumping iron remover, the RCYDII type permanent magnet self dumping iron remover has a shorter frame and is suitable for situations where installation space is limited. It is composed of high-performance permanent magnet cores, scrap iron belts, reduction motors, frames, rollers, and other parts, and is used in conjunction with various conveyors. It is suitable for removing iron from conveyor belts in various industries. It can achieve continuous suction and disposal of iron. The belt has automatic correction function, low noise, reliable operation, and simple maintenance. The internal magnetic circuit adopts computer simulation design and a perfect dual pole structure to ensure the long-term operation of the whole machine without faults in harsh environments. It has explosion-proof and armored types.

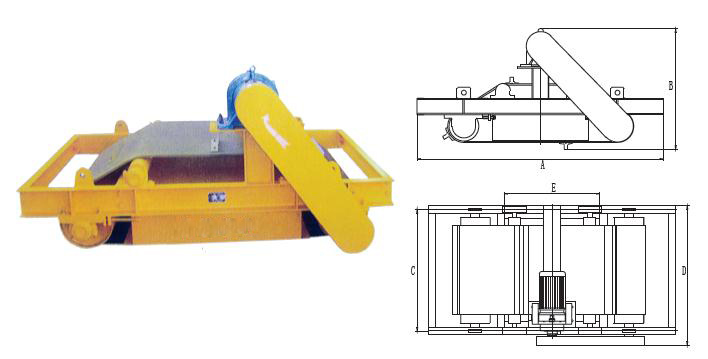

2、 Schematic diagram

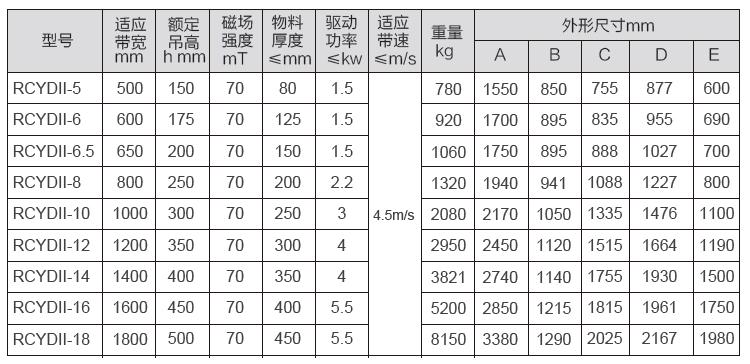

3、 Main technical parameters

Note: All models in this series are designed with extra strong T1, T2, and T3 products that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively.

4、 Industry Applications
