1、 Explanation

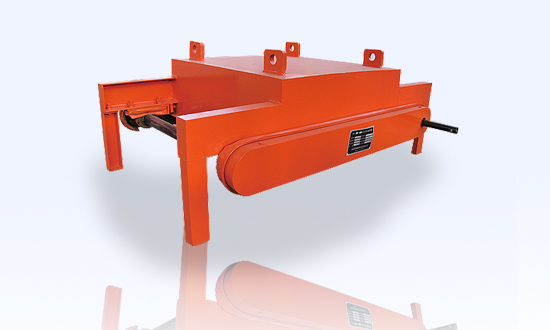

The RCYP type permanent magnet manual self dumping iron remover is suitable for situations where the conveyor belt is narrow, the material is thin, and there is less impurity iron. This machine has a simple structure, reliable operation, economic practicality, maintenance free, and no noise. When the accumulation of ferromagnetic debris at the bottom of the magnet reaches a certain level, manually shake the handle to drive the scraper and remove the scrap iron.

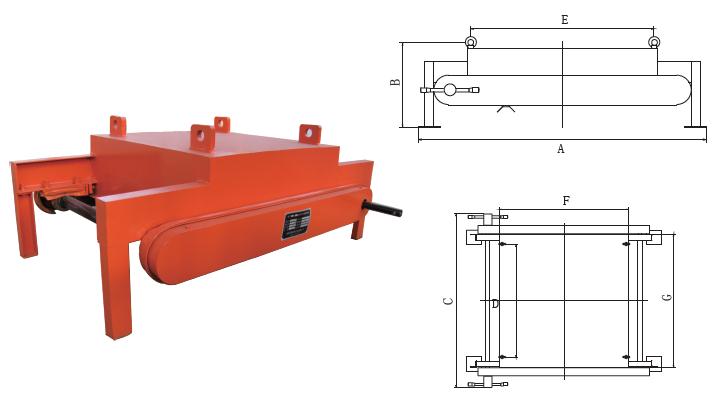

2、 Schematic diagram

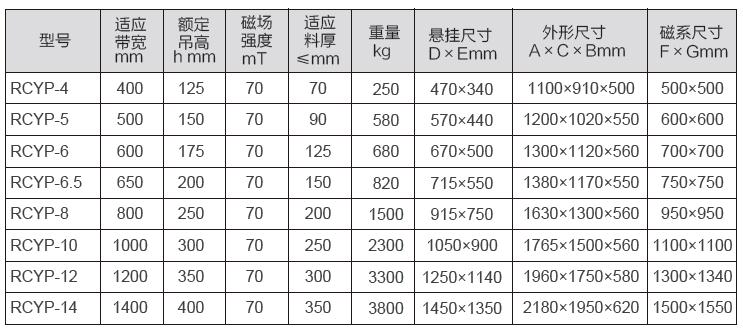

3、 Main technical parameters

Note: All models in this series are designed with extra strong T1, T2, and T3 products that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively.

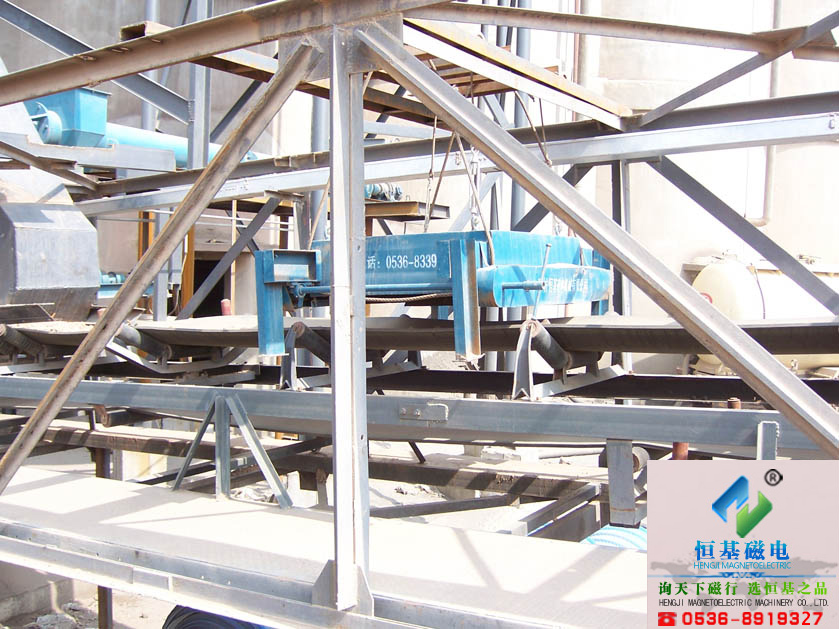

4、 Industry Applications
