1、 Explanation

The RCYA inclined pipeline permanent magnet iron remover is divided into two types: RCYAl and RCYA2, which include non-magnetic pipelines and permanent magnets. It is specially designed for removing non-magnetic materials in closed pipelines. The interior of the permanent magnet iron remover is composed of high-performance rare earth strong magnetic materials to form a composite magnetic system. It has the characteristics of small size, high magnetic force, light weight, clean iron removal, convenience, no energy consumption, and long service life. Suitable for situations where there is no conveyor belt and only a discharge chute can be provided. When bulk materials pass through, iron impurities are adsorbed by high magnetic field permanent magnets. When removing iron impurities, the pipeline dedicated door is opened to manually remove the impurities. This device is suitable for applications with low iron content and is mainly used to remove impurities in the discharge pipelines of industries such as cement, chemical, coal, plastics, refractory materials, and building materials.

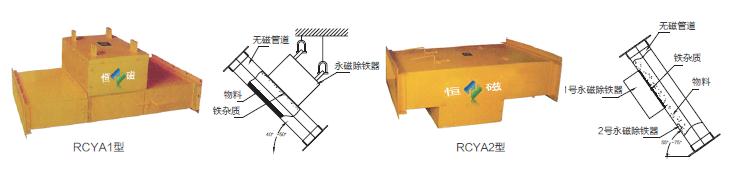

2、 Schematic diagram

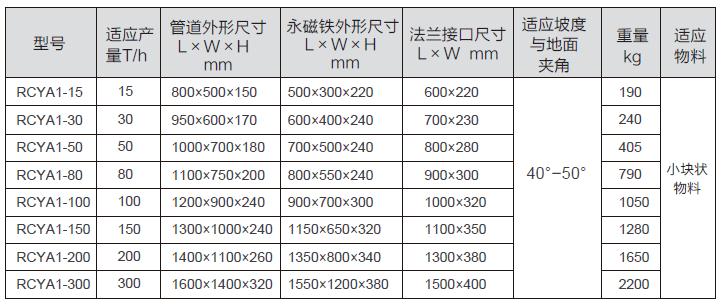

3、 Main technical parameters of RCYA1 type

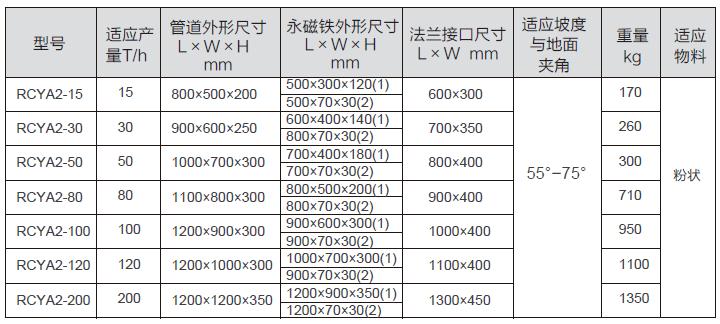

4、 Main technical parameters of RCYA2 type
