1、 Explanation

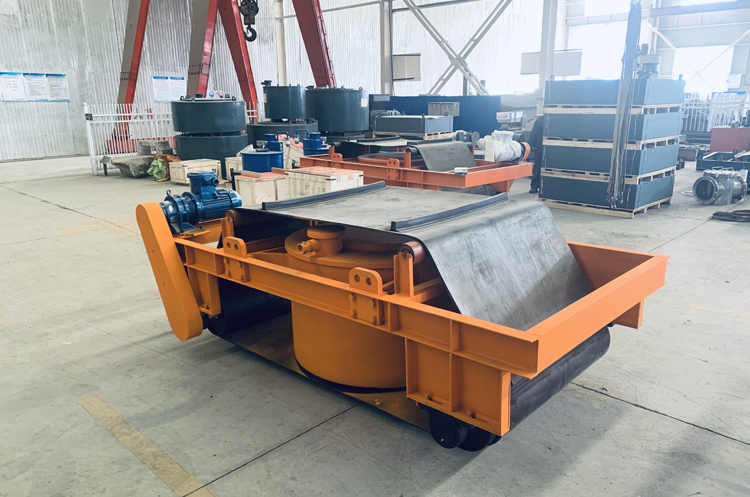

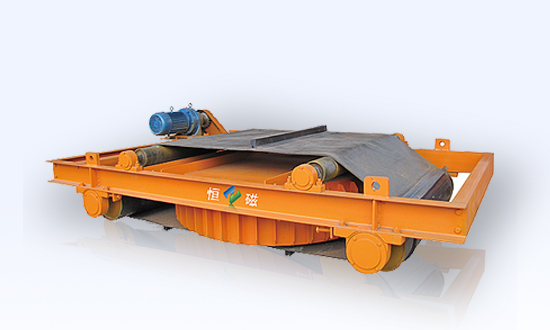

The RCDD self cooling self dumping electromagnetic iron remover is a device used for automatically removing impurities of iron from powdered or block shaped non-magnetic materials. It is internally cast with electrical specific resin and features a self cooling fully sealed structure. It has the advantages of high magnetic penetration depth, strong suction, dust prevention, rain resistance, corrosion resistance, and automatic belt correction, and can still operate reliably in extremely harsh environments.

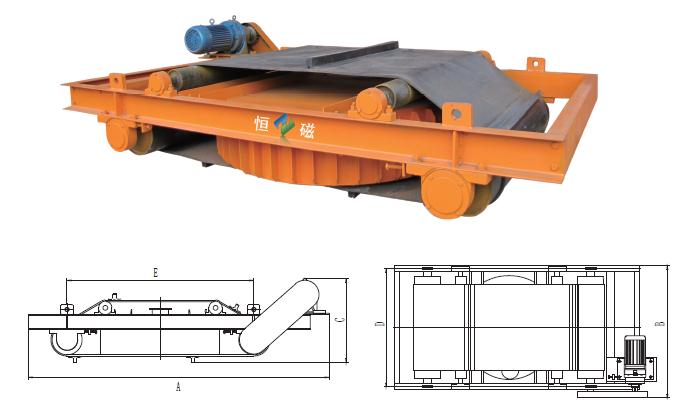

2、 Schematic diagram

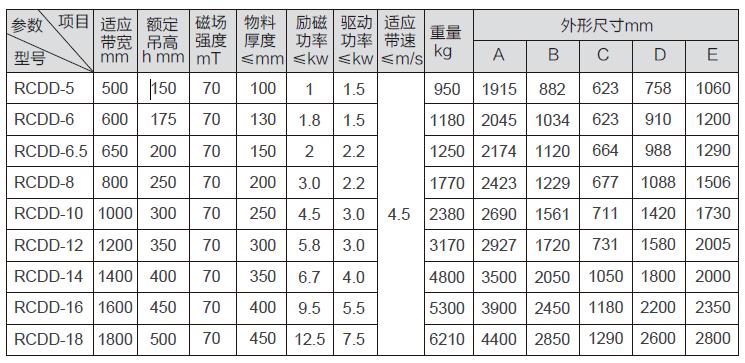

3、 Main technical parameters

Note: All models in this series are designed with extra strong T1, T2, and T3 products that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively.

4、 Industry Applications
