1、 Explanation

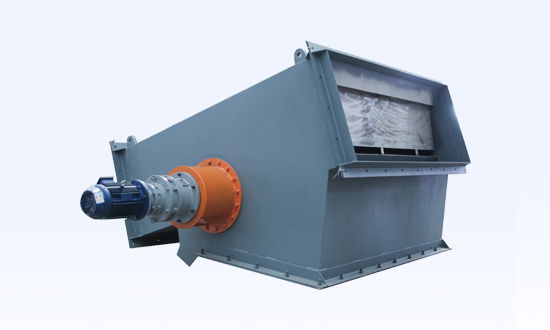

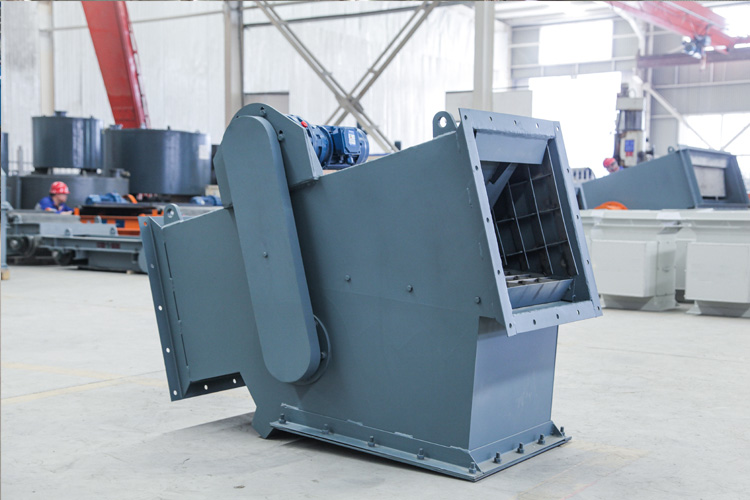

The RCYG pipeline self dumping permanent magnet iron remover is a high-performance automated iron removal equipment independently developed by our company.

This equipment is mainly used for iron removal of cement, water slag, and other powdery and small granular materials. The iron remover is connected in series with the lower outlet of the bucket elevator or with the conveyor chute. By passing through the iron remover, the powder can automatically separate and discharge iron impurities such as iron segments, iron beans, and iron powder mixed in it, ensuring stable production operation. This not only improves the purity of cement and other powder, but also reduces maintenance costs. While removing iron, it can also automatically recycle iron impurities and turn waste into treasure. The machine has stable performance, high iron removal rate, easy use, uses high-performance wear-resistant ceramics, does not affect the magnetic field, and has a wear-resistant life guarantee of more than 5 years. It is a new generation of energy-saving and efficient iron removal equipment. The product is widely used in industries such as cement, ceramics, building materials, chemicals, food, glass, metallurgy, steel, and electricity.

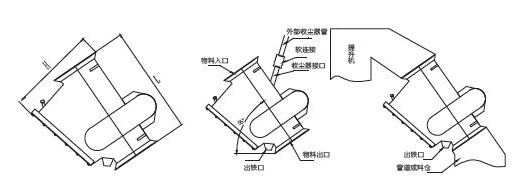

2、 Schematic diagram

3、 Usage conditions

◇ Material temperature: ≤ 125 ℃ (high-temperature resistant magnets can be used when exceeding this temperature); Pipeline inclination angle: 55 ° -60 ° (optimal installation angle); ◇ Negative pressure of pipeline: ≥- 50Pa； ◇ Environmental temperature: ≤ 45 ℃; ◇ Place of use: Indoor (rainproof facilities are required for outdoor use); The best installation position: the lower outlet of the bucket elevator.

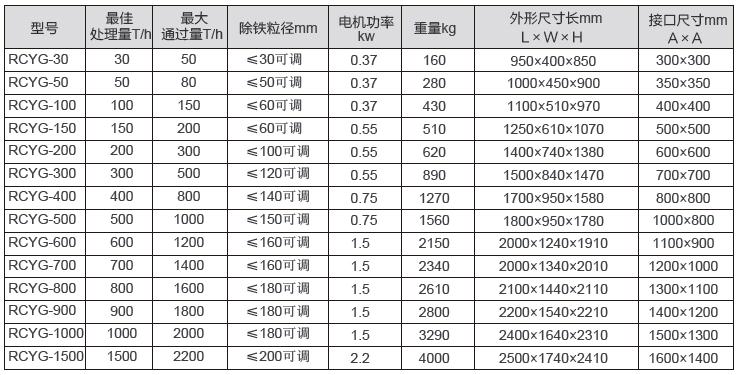

4、 Main technical parameters

5、 Application industry
