CQZ type fully automatic online magnetic separator

Application scope:Food industry, mining equipment, sewage treatment, battery materials, energy and environmental protection, non-metallic minerals, waste sorting, pharmaceutical industry, etc

Contact

product overview:

1、 Explanation

The CQZ type fully automatic online magnetic separator is installed in the assembly line to achieve real-time automatic removal of iron from materials online. The automatic timing controller can be set for continuous automatic real-time cleaning, or the cleaning time interval can be set according to the iron content. Its powerful magnetic field can remove ferromagnetic substances from flowing, dry, flowable, powdery, and fine particles.

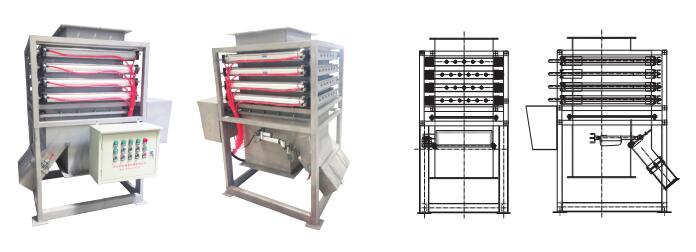

2、 Schematic diagram

3、 Installation method
Free fall, pipeline series for conveying materials, and standalone use of bulk materials.
4、 Application industry
Iron removal from fine powder materials such as food, carbon black, activated carbon, chemical industry, pharmaceutical industry, plastic industry, wood industry, recycling industry, packaging industry, quartz sand iron removal, potassium feldspar iron removal, mica iron removal, micro powder iron removal, fly ash iron removal, etc.
5、 Product Description
The CQZ fully automatic online magnetic separator is mainly used to separate ferromagnetic impurities in powdered materials. It is arranged in a staggered manner with at least four layers of magnetic rods, ensuring that the material can fully contact the magnets during the falling process. At least four drawer style magnetic rod groups can be set to continuously and alternately unload iron. When one layer is extracted for unloading iron, the other three layers can still ensure that the falling iron is adsorbed.
6、 Product advantages
The cleaning of the system is fully automated, and the fully sealed structural design ensures that there is no opening or closing action during the unloading process, allowing the entire operation and unloading work to be carried out in a sealed state. The magnetic core set outside the sealed shell shuttles back and forth between the working area and the cleaning area, and the strong magnetic force can automatically detach the adsorbed iron according to the set trajectory to the cleaning area. Fully sealed iron collector, quick opening and cleaning, saving time, effort and trouble.

7、 Main technical parameters

The flexible and versatile layer design can accommodate up to ten layers of staggered arrangement, resulting in a higher iron removal rate.

Multiple standard calibers to choose from: 200 * 200mm, 300 * 300mm, 400 * 400mm, 500 * 500mm, 600 * 600mm, 700 * 700mm, 800 * 800mm, 1000 * 1000mm. More interface sizes can be customized according to customer on-site requirements to achieve perfect matching.

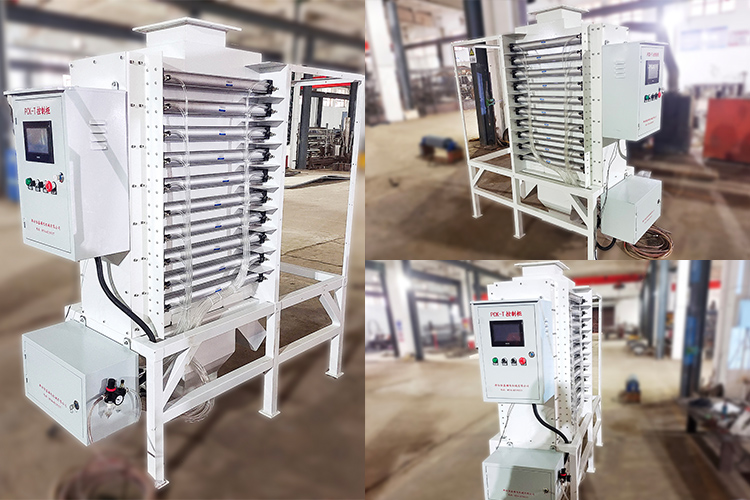

8、 Product shooting
